PAP 110
Bus stop display.
Also available in presentation mode…

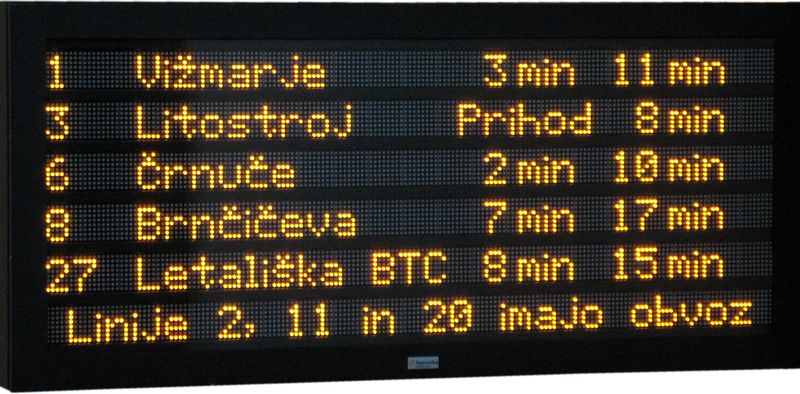

General description of six-line LED display PAP 140/6
Technical data
| Dimensions(w x h x d): |
1400 mm x 632 mm x 131 mm |
|---|---|
| Protection level: |
IP54 |
| Vadalism resistant: | robust housing, LEDs protected against mechanical shocks |
| Material: |
aluminium, lexan, stainless steel |
| Power supply: | 180 - 264 V, 47 - 63 Hz |
| Weight: | 31 kg |
| Instalation: |
on the back side of housing, fastening clamps enclosed |
| Operating temperature range: | -20 to +60° C |
LED display
| Number of lines: | 6 |
|---|---|
| Number of characters per line: | 28 |
| Character height: | 58 mm |
| LED matrix: |
5x8 pixels |
| Brightness: | the brightness adapts automatically to the ambient light conditions |
| Character colour (LED display): |
yellow |
| Viewing angle: | 110° |
| Reading distance: | up to 25 m |
| Other: |
characteristics are the same as a two-line display |
Two-line LED display PAP 110/2
Technical data
| Dimensions (w x h x d): | 1067 mm x 253 mm x 131 mm |
|---|---|
| Weight:: |
12 kg |
| Others: |
other characteristics are the same as a six-line display LED display |
LED display
| Number of lines: | 2 |
|---|---|
| Number of characters per line: | 32 |
| Character height:: | 37 mm |
| LED matrix: |
5x8 pixels |
| Brightness: | the brightness adapts automatically to the ambient light conditions |
| Character colour (LED display): | yellow |
| Viewing angle: | 110° |
| Reading distance: | up to 15 m |
| Operating temperature range: | -20 do +60° C |
Common features of both display types
| Maintenance, repair: | easy access to service doors, easy maintenance and repair. |
|---|---|
| Error detection and reporting: | display automatically detects and reports defects to a server in a control centre. |
| Voice announcement: | display can be upgraded with equipment for voice announcement. |
Message display and displayed information content
| Message display: | Static or moving messages. The speed of a moving text is adjustable. |
|---|---|
| Content: |
- number of a bus line - name of the direction of line - scheduled bus arrival (in minutes); - dynamic passenger information - in one or more lines - error message; message is configurable |
| Software for content management: | PAP server |
